PAGEIOLATCH_SH Wait Type in SQL Server

Part of the SQL Server Wait Types Library.

---

PAGEIOLATCH_SH appears when a query needs a data page that is not in the buffer pool, so SQL Server must read it from disk. The SH stands for shared latch, the read operation. The query waits until the I/O completes and the page is loaded into memory.

This is one of the most common waits on servers where the working data set does not fit in RAM.

---

Is This Wait Expected?

Some PAGEIOLATCH_SH is normal. Any server doing real work reads pages from disk occasionally. It becomes a signal worth investigating when:

• It is consistently in the top 3 wait types by pct_total_wait
• pct_total_wait is above 20% and trending upward
• avg_wait_ms is above 5ms on a consistent basis (not just during batch jobs)
• You are getting performance complaints and this is the top wait

---

When To Ignore It

After a restart, the buffer pool is empty. Everything is a cold read for the first hour or two. PAGEIOLATCH_SH will be high and then settle down. Normal.

Nightly index rebuilds, rebuilding an index evicts pages from cache and reads them back. Expect a spike during the maintenance window.

Reporting and ETL queries, a query doing a full table scan on a large table will always generate PAGEIOLATCH_SH. This may be expected for that workload. Compare: is PAGEIOLATCH_SH high only during batch windows, or all the time?

Cold-cache first run, a query that has just been compiled runs its pages for the first time. The second run will not wait at all. Not a problem.

---

Root Causes

Buffer pool too small, the most common cause. The server’s working data set is larger than available RAM. SQL Server reads frequently-needed pages from disk because it cannot keep them all in memory. The fix is more RAM, but see the diagnosis section first, sometimes it is a missing index making the buffer pool work too hard.

Slow storage, even if the buffer pool is sized correctly, a read that does reach disk on slow storage (spinning disk, overloaded SAN, shared iSCSI) will take longer. avg_wait_ms above 20ms regularly suggests a storage performance problem, not just a sizing one.

Missing indexes causing large scans, a query without the right index must scan thousands of pages instead of seeking to the right rows. This generates far more I/O than necessary and cycles through buffer pool pages faster than reads with good indexes.

Large active working set, even with plenty of RAM, a server running many distinct workloads may not be able to cache all of them effectively. Columnstore queries, ETL, OLTP, and reporting all compete for buffer pool space.

---

How To Diagnose It

First, confirm the wait is real and not a temporary spike:

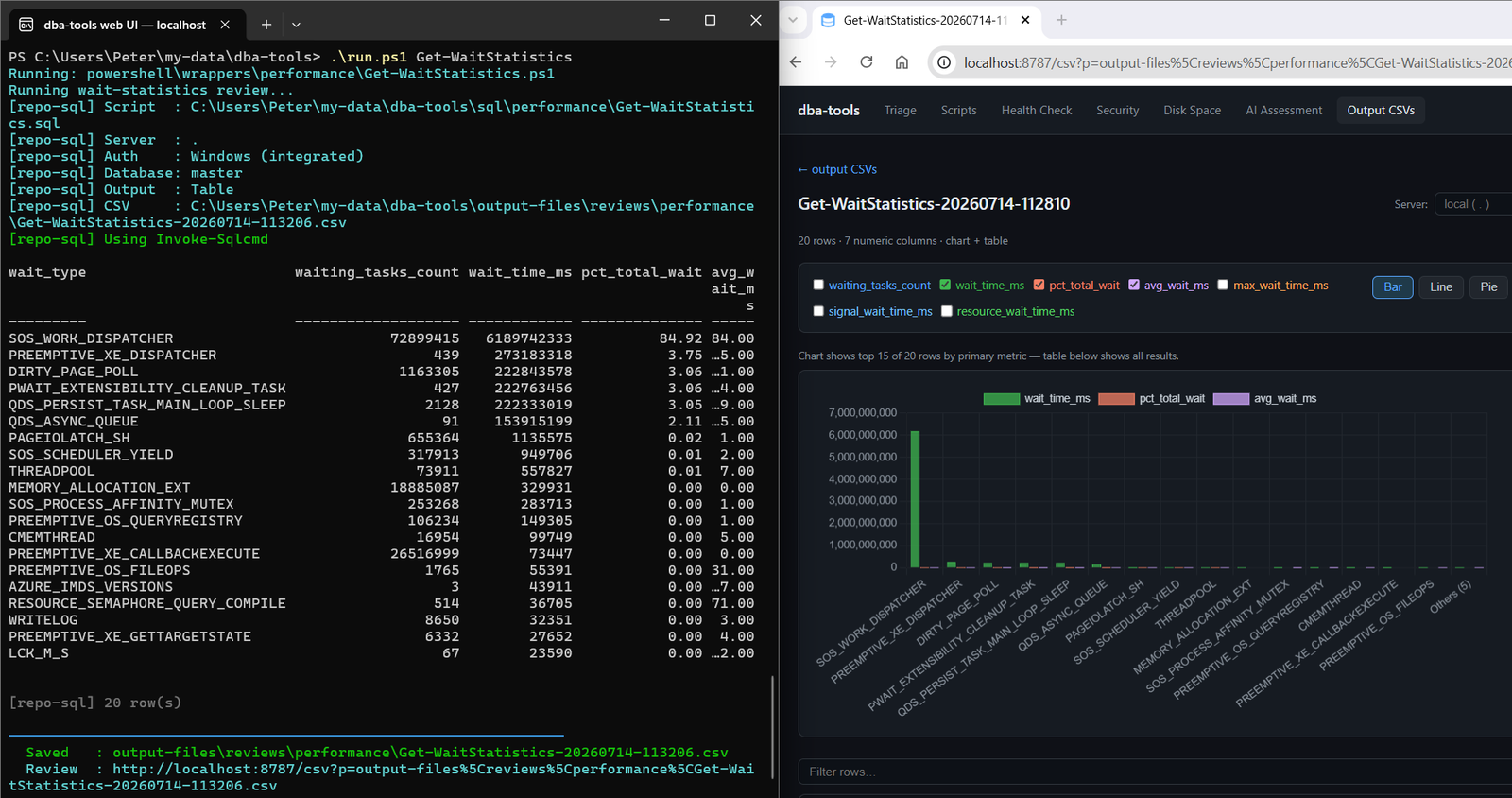

Run the wait statistics script twice, 15–30 minutes apart, and compare the delta. If PAGEIOLATCH_SH is consistently in the top few positions in both snapshots, it is real.

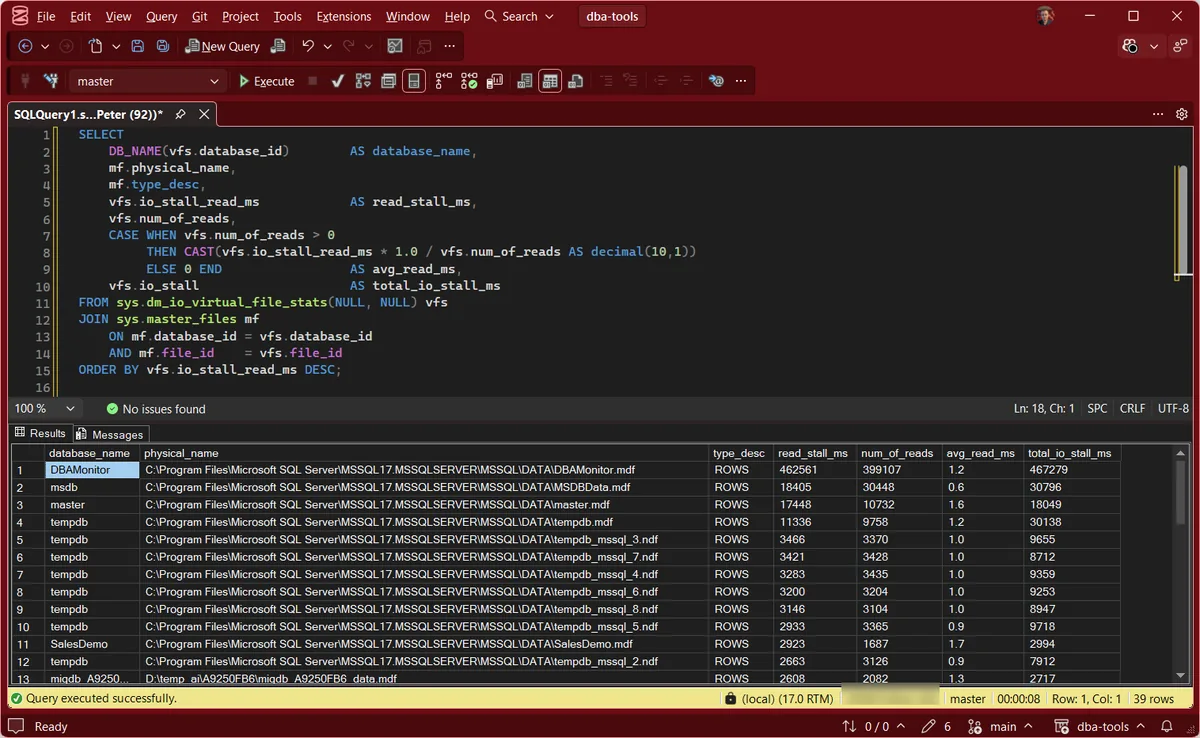

Find which databases and files are driving the reads:

SELECT
    DB_NAME(vfs.database_id)        AS database_name,
    mf.physical_name,
    mf.type_desc,
    vfs.io_stall_read               AS read_stall_ms,
    vfs.num_of_reads,
    CASE WHEN vfs.num_of_reads > 0
         THEN vfs.io_stall_read / vfs.num_of_reads
         ELSE 0 END                 AS avg_read_ms,
    vfs.io_stall                    AS total_io_stall_ms
FROM sys.dm_io_virtual_file_stats(NULL, NULL) vfs
JOIN sys.master_files mf
    ON mf.database_id = vfs.database_id
    AND mf.file_id    = vfs.file_id
ORDER BY vfs.io_stall_read DESC;

Files with high avg_read_ms (above 15–20ms) indicate genuine storage latency. High read counts with low latency indicate buffer pool churn.

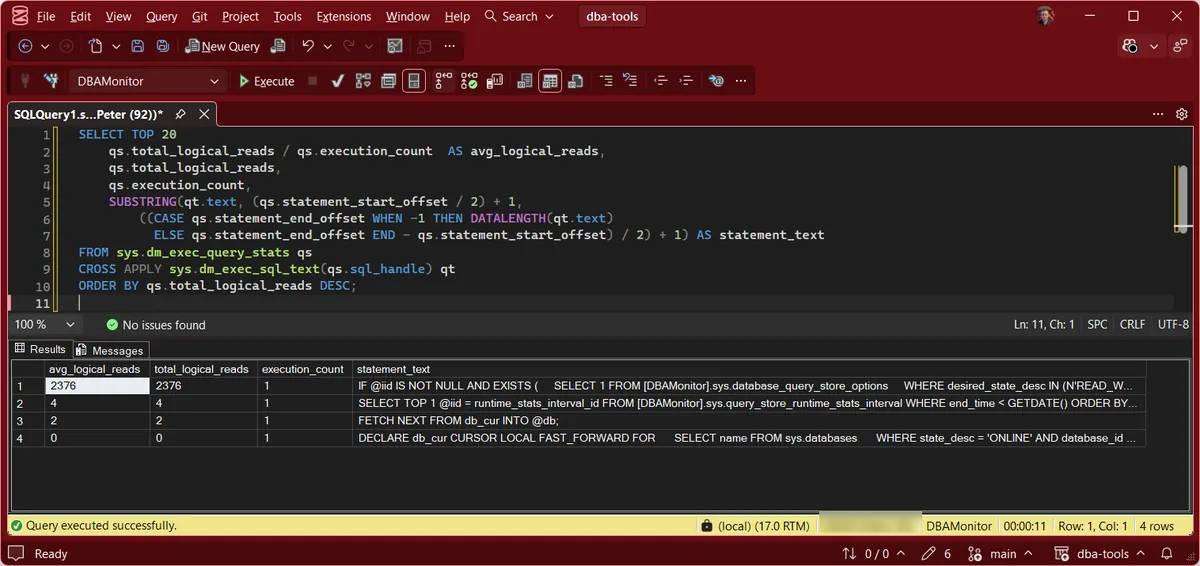

Find which queries are doing the most reads:

SELECT TOP 20
    qs.total_logical_reads / qs.execution_count  AS avg_logical_reads,
    qs.total_logical_reads,
    qs.execution_count,
    SUBSTRING(qt.text, (qs.statement_start_offset / 2) + 1,
        ((CASE qs.statement_end_offset WHEN -1 THEN DATALENGTH(qt.text)
          ELSE qs.statement_end_offset END - qs.statement_start_offset) / 2) + 1) AS statement_text
FROM sys.dm_exec_query_stats qs
CROSS APPLY sys.dm_exec_sql_text(qs.sql_handle) qt
ORDER BY qs.total_logical_reads DESC;

Check missing indexes, if logical reads are high on a table, check whether there is a missing index that would turn a scan into a seek:

.\run.ps1 Get-MissingIndexes

---

What To Do

If storage latency is high (avg_read_ms > 15ms consistently):

• Move data files to faster storage (SSD or NVMe)
• Check if the storage array is shared and overloaded
• Check for disk queue depth in Windows Performance Monitor (PhysicalDisk\Current Disk Queue Length)

If storage latency is fine but buffer pool churn is high:

• Check available memory on the server, has SQL Server’s max server memory been set too low?
• Look for other processes consuming RAM (antivirus scans, CLR, memory-leaking apps)
• Add RAM if the working set genuinely does not fit
• Add indexes to reduce logical read counts for the top-offending queries

If it is a specific query causing the problem:

• Add the missing index (validate with an execution plan first)
• Consider partitioning if only a subset of the table is needed
• Review whether the query needs to return all those rows, or whether it can be filtered earlier

---

Related Scripts

• Get-WaitStatistics, the overview script that surfaces this wait type
• Get-MissingIndexes.ps1, find indexes that would reduce scan reads
• Get-DatabaseIoUsage.ps1, per-database I/O breakdown

---

Get The Scripts

The wait statistics script is in the dba-tools repo on GitHub:

• sql/performance/Get-WaitStatistics.sql
• powershell/reporting/Get-WaitStatistics.ps1
