Part of the DBA-Tools Project.
Get Instance Configuration Snapshot gives you every raw sp_configure setting; useful, but it doesn’t tell you which of those hundred-plus rows actually matter. This script is the graded version: roughly 20 checks spanning memory, security, backups, integrity, and database settings, each scored PASS, WARN, or FAIL against practical best-practice thresholds, with the fix already written out.
It’s the first thing worth running when taking ownership of a server you didn’t build, a fast way to find out what actually needs attention before you’ve read a single other diagnostic.
Why Instance Configuration Score Matters
A raw configuration dump requires knowing what “good” looks like for every setting. This script encodes that knowledge so you don’t have to hold it all in your head:
- Weights findings by severity (CRITICAL/HIGH/MEDIUM/LOW), so the worst problems sort to the top automatically
- Covers cross-cutting risk, not just performance settings: backup coverage, DBCC CHECKDB currency,
xp_cmdshell, thesalogin, and more, in one pass - Every WARN/FAIL comes with the actual remediation command, not just a description of the problem
- Turns “I should check this server out” into a five-minute read instead of an afternoon
When to Run This Script
- The first thing to run when taking ownership of a new or inherited server
- Routine SQL Server health checks
- Before and after a major change, to confirm nothing regressed
- Building a quick-look audit across many servers in an estate
The Script
Run the following script against your SQL Server instance.
/*
Script Name : Get-InstanceConfigurationScore
Category : monitoring
Purpose : Scores the SQL Server instance across ~20 key configuration checks. Returns PASS/WARN/FAIL per item with finding and recommended action. Run this first when taking ownership of a new instance.
Author : Peter Whyte (https://sqldba.blog/dba-scripts-get-instance-configuration-score/)
Requires : VIEW ANY DATABASE, VIEW SERVER STATE
*/
-- SAFE:ReadOnly
-- IMPACT:Low
SET NOCOUNT ON;
DECLARE @max_server_memory BIGINT = (SELECT CAST(value_in_use AS BIGINT) FROM sys.configurations WHERE name = 'max server memory (MB)');
DECLARE @maxdop INT = (SELECT CAST(value_in_use AS INT) FROM sys.configurations WHERE name = 'max degree of parallelism');
DECLARE @cost_threshold INT = (SELECT CAST(value_in_use AS INT) FROM sys.configurations WHERE name = 'cost threshold for parallelism');
DECLARE @xp_cmdshell INT = (SELECT CAST(value_in_use AS INT) FROM sys.configurations WHERE name = 'xp_cmdshell');
DECLARE @optimize_adhoc INT = (SELECT CAST(value_in_use AS INT) FROM sys.configurations WHERE name = 'optimize for ad hoc workloads');
DECLARE @backup_compression INT = (SELECT CAST(value_in_use AS INT) FROM sys.configurations WHERE name = 'backup compression default');
DECLARE @cpu_count INT = (SELECT cpu_count FROM sys.dm_os_sys_info);
DECLARE @physical_memory_mb BIGINT = (SELECT physical_memory_kb / 1024 FROM sys.dm_os_sys_info);
DECLARE @recommended_max_mem BIGINT = @physical_memory_mb - CASE WHEN @physical_memory_mb > 16384 THEN 4096 WHEN @physical_memory_mb > 4096 THEN 2048 ELSE 1024 END;
DECLARE @recommended_maxdop INT = CASE WHEN @cpu_count <= 8 THEN @cpu_count ELSE 8 END;
DECLARE @sa_enabled INT = (SELECT CAST(is_disabled AS INT) FROM sys.server_principals WHERE name = 'sa');
DECLARE @db_without_backup_7d INT = (SELECT COUNT(*) FROM sys.databases d WHERE d.name NOT IN ('master','model','msdb','tempdb') AND d.state = 0 AND NOT EXISTS (SELECT 1 FROM msdb.dbo.backupset bs WHERE bs.database_name = d.name AND bs.type = 'D' AND bs.backup_finish_date >= DATEADD(DAY, -7, GETDATE())));
DECLARE @db_without_checkdb_7d INT = (SELECT COUNT(*) FROM sys.databases d WHERE d.name NOT IN ('master','model','tempdb') AND d.state = 0 AND NOT EXISTS (SELECT 1 FROM msdb.dbo.suspect_pages WHERE 1=0) AND DATABASEPROPERTYEX(d.name, 'LastGoodCheckDbTime') < DATEADD(DAY, -7, GETDATE()));
DECLARE @autoshrink_count INT = (SELECT COUNT(*) FROM sys.databases WHERE is_auto_shrink_on = 1 AND name NOT IN ('master','model','msdb','tempdb'));
DECLARE @autoclose_count INT = (SELECT COUNT(*) FROM sys.databases WHERE is_auto_close_on = 1 AND name NOT IN ('master','model','msdb','tempdb'));
DECLARE @pct_growth_db_count INT = (SELECT COUNT(DISTINCT database_id) FROM sys.master_files WHERE is_percent_growth = 1 AND type = 0 AND database_id > 4);
DECLARE @non_checksum_db_count INT = (SELECT COUNT(*) FROM sys.databases WHERE page_verify_option_desc <> 'CHECKSUM' AND name NOT IN ('master','model','msdb','tempdb') AND state = 0);
DECLARE @offline_db_count INT = (SELECT COUNT(*) FROM sys.databases WHERE state <> 0 AND name NOT IN ('master','model','msdb','tempdb'));
DECLARE @compat_behind_count INT = (SELECT COUNT(*) FROM sys.databases d WHERE d.state = 0 AND d.name NOT IN ('master','model','msdb','tempdb') AND d.compatibility_level < (SELECT CASE CAST(SERVERPROPERTY('ProductMajorVersion') AS INT) WHEN 16 THEN 160 WHEN 15 THEN 150 WHEN 14 THEN 140 WHEN 13 THEN 130 WHEN 12 THEN 120 WHEN 11 THEN 110 ELSE 100 END));
DECLARE @linked_server_count INT = (SELECT COUNT(*) FROM sys.servers WHERE is_linked = 1);
DECLARE @user_db_count INT = (SELECT COUNT(*) FROM sys.databases WHERE name NOT IN ('master','model','msdb','tempdb') AND state = 0);
SELECT
sort_order,
category,
check_name,
weight,
status,
finding,
recommendation
FROM (
-- Max server memory
SELECT 1 AS sort_order, 'Memory' AS category, 'Max server memory configured' AS check_name, 'HIGH' AS weight,
CASE WHEN @max_server_memory = 2147483647 THEN 'FAIL' WHEN @max_server_memory > @recommended_max_mem * 1.1 THEN 'WARN' ELSE 'PASS' END AS status,
CASE WHEN @max_server_memory = 2147483647 THEN 'Default (2147483647 MB) — no limit set; SQL can starve the OS'
WHEN @max_server_memory > @recommended_max_mem * 1.1 THEN 'Set to ' + CAST(@max_server_memory AS VARCHAR) + ' MB — may be higher than recommended (' + CAST(@recommended_max_mem AS VARCHAR) + ' MB)'
ELSE 'Set to ' + CAST(@max_server_memory AS VARCHAR) + ' MB (recommended: ' + CAST(@recommended_max_mem AS VARCHAR) + ' MB)' END AS finding,
CASE WHEN @max_server_memory = 2147483647 THEN 'Set max server memory: EXEC sp_configure ''max server memory (MB)'', ' + CAST(@recommended_max_mem AS VARCHAR) + '; RECONFIGURE'
ELSE 'No action required' END AS recommendation
UNION ALL
-- MAXDOP
SELECT 2, 'Parallelism', 'MAXDOP configured', 'HIGH',
CASE WHEN @maxdop = 0 AND @cpu_count > 8 THEN 'WARN' WHEN @maxdop = 0 AND @cpu_count <= 8 THEN 'PASS' WHEN @maxdop BETWEEN 1 AND @recommended_maxdop THEN 'PASS' ELSE 'WARN' END,
'MAXDOP: ' + CAST(@maxdop AS VARCHAR) + ' | CPU count: ' + CAST(@cpu_count AS VARCHAR) + ' | Recommended: ' + CAST(@recommended_maxdop AS VARCHAR),
CASE WHEN @maxdop = 0 AND @cpu_count > 8 THEN 'Set MAXDOP to ' + CAST(@recommended_maxdop AS VARCHAR) + ': EXEC sp_configure ''max degree of parallelism'', ' + CAST(@recommended_maxdop AS VARCHAR) + '; RECONFIGURE' ELSE 'No action required' END
UNION ALL
-- Cost threshold for parallelism
SELECT 3, 'Parallelism', 'Cost threshold for parallelism', 'MEDIUM',
CASE WHEN @cost_threshold <= 5 THEN 'WARN' ELSE 'PASS' END,
'Cost threshold: ' + CAST(@cost_threshold AS VARCHAR) + CASE WHEN @cost_threshold <= 5 THEN ' (default — most OLTP queries will parallelize unnecessarily)' ELSE '' END,
CASE WHEN @cost_threshold <= 5 THEN 'Increase to 50: EXEC sp_configure ''cost threshold for parallelism'', 50; RECONFIGURE' ELSE 'No action required' END
UNION ALL
-- Backup coverage (7 days)
SELECT 4, 'Backup', 'All databases have recent full backup', 'CRITICAL',
CASE WHEN @db_without_backup_7d > 0 THEN 'FAIL' ELSE 'PASS' END,
CASE WHEN @db_without_backup_7d > 0 THEN CAST(@db_without_backup_7d AS VARCHAR) + ' database(s) have no full backup in the last 7 days — see Get-BackupCoverage.sql'
ELSE 'All ' + CAST(@user_db_count AS VARCHAR) + ' user database(s) have a full backup within 7 days' END,
CASE WHEN @db_without_backup_7d > 0 THEN 'Run Get-BackupCoverage.sql to identify affected databases; ensure backup jobs are scheduled and running' ELSE 'No action required' END
UNION ALL
-- Backup compression
SELECT 5, 'Backup', 'Backup compression enabled', 'MEDIUM',
CASE WHEN @backup_compression = 1 THEN 'PASS' ELSE 'WARN' END,
CASE WHEN @backup_compression = 1 THEN 'Backup compression is enabled (default)' ELSE 'Backup compression is OFF — backups will be larger and slower' END,
CASE WHEN @backup_compression = 0 THEN 'Enable: EXEC sp_configure ''backup compression default'', 1; RECONFIGURE' ELSE 'No action required' END
UNION ALL
-- DBCC CHECKDB (7 days)
SELECT 6, 'Integrity', 'DBCC CHECKDB run within 7 days', 'CRITICAL',
CASE WHEN @db_without_checkdb_7d > 0 THEN 'WARN' ELSE 'PASS' END,
CASE WHEN @db_without_checkdb_7d > 0 THEN CAST(@db_without_checkdb_7d AS VARCHAR) + ' database(s) have not had DBCC CHECKDB in 7+ days — see Get-LastDbccCheckdb.sql'
ELSE 'All databases have had DBCC CHECKDB within 7 days' END,
CASE WHEN @db_without_checkdb_7d > 0 THEN 'Schedule regular DBCC CHECKDB maintenance — weekly minimum; run Get-DatabaseIntegrityChecks.sql' ELSE 'No action required' END
UNION ALL
-- sa login disabled
SELECT 7, 'Security', 'sa login disabled or renamed', 'HIGH',
CASE WHEN @sa_enabled = 1 THEN 'PASS' WHEN @sa_enabled = 0 THEN 'WARN' ELSE 'PASS' END,
CASE WHEN @sa_enabled = 1 THEN 'sa login is disabled' WHEN @sa_enabled = 0 THEN 'sa login is ENABLED — SQL auth attack surface' ELSE 'sa login not found (likely renamed — best practice)' END,
CASE WHEN @sa_enabled = 0 THEN 'Disable: ALTER LOGIN [sa] DISABLE; or rename: ALTER LOGIN [sa] WITH NAME = [sql_sa_disabled]' ELSE 'No action required' END
UNION ALL
-- xp_cmdshell
SELECT 8, 'Security', 'xp_cmdshell disabled', 'HIGH',
CASE WHEN @xp_cmdshell = 0 THEN 'PASS' ELSE 'FAIL' END,
CASE WHEN @xp_cmdshell = 0 THEN 'xp_cmdshell is disabled' ELSE 'xp_cmdshell is ENABLED — allows OS command execution from SQL' END,
CASE WHEN @xp_cmdshell = 1 THEN 'Disable: EXEC sp_configure ''xp_cmdshell'', 0; RECONFIGURE' ELSE 'No action required' END
UNION ALL
-- AUTO_SHRINK
SELECT 9, 'Database Settings', 'AUTO_SHRINK disabled', 'HIGH',
CASE WHEN @autoshrink_count = 0 THEN 'PASS' ELSE 'FAIL' END,
CASE WHEN @autoshrink_count = 0 THEN 'No user databases have AUTO_SHRINK enabled'
ELSE CAST(@autoshrink_count AS VARCHAR) + ' database(s) have AUTO_SHRINK ON — causes fragmentation and growth-shrink cycles' END,
CASE WHEN @autoshrink_count > 0 THEN 'Disable on affected databases: ALTER DATABASE [dbname] SET AUTO_SHRINK OFF — see Get-DatabaseHealth.sql for full list' ELSE 'No action required' END
UNION ALL
-- AUTO_CLOSE
SELECT 10, 'Database Settings', 'AUTO_CLOSE disabled', 'MEDIUM',
CASE WHEN @autoclose_count = 0 THEN 'PASS' ELSE 'WARN' END,
CASE WHEN @autoclose_count = 0 THEN 'No user databases have AUTO_CLOSE enabled'
ELSE CAST(@autoclose_count AS VARCHAR) + ' database(s) have AUTO_CLOSE ON — causes connection overhead and plan cache flushes' END,
CASE WHEN @autoclose_count > 0 THEN 'Disable: ALTER DATABASE [dbname] SET AUTO_CLOSE OFF — see Get-DatabaseHealth.sql for list' ELSE 'No action required' END
UNION ALL
-- Percentage-based autogrowth
SELECT 11, 'Storage', 'No percentage-based autogrowth', 'HIGH',
CASE WHEN @pct_growth_db_count = 0 THEN 'PASS' ELSE 'WARN' END,
CASE WHEN @pct_growth_db_count = 0 THEN 'No data files use percentage-based autogrowth'
ELSE CAST(@pct_growth_db_count AS VARCHAR) + ' database(s) have data files with percentage-based growth — growth events become unpredictably large' END,
CASE WHEN @pct_growth_db_count > 0 THEN 'Switch to fixed-size growth (e.g., 256 MB or 1 GB): ALTER DATABASE [dbname] MODIFY FILE (NAME = N''filename'', FILEGROWTH = 256MB) — see Get-DatabaseFilesDetail.sql' ELSE 'No action required' END
UNION ALL
-- Page verify CHECKSUM
SELECT 12, 'Data Integrity', 'Page verify set to CHECKSUM', 'MEDIUM',
CASE WHEN @non_checksum_db_count = 0 THEN 'PASS' ELSE 'WARN' END,
CASE WHEN @non_checksum_db_count = 0 THEN 'All databases use CHECKSUM page verification'
ELSE CAST(@non_checksum_db_count AS VARCHAR) + ' database(s) not using CHECKSUM — torn page detection only or none' END,
CASE WHEN @non_checksum_db_count > 0 THEN 'Set CHECKSUM: ALTER DATABASE [dbname] SET PAGE_VERIFY CHECKSUM WITH NO_WAIT — see Get-DatabaseHealth.sql for list' ELSE 'No action required' END
UNION ALL
-- Databases in non-ONLINE state
SELECT 13, 'Database State', 'No databases offline or suspect', 'CRITICAL',
CASE WHEN @offline_db_count = 0 THEN 'PASS' ELSE 'FAIL' END,
CASE WHEN @offline_db_count = 0 THEN 'All user databases are ONLINE'
ELSE CAST(@offline_db_count AS VARCHAR) + ' database(s) are in a non-ONLINE state — investigate immediately' END,
CASE WHEN @offline_db_count > 0 THEN 'Run: SELECT name, state_desc, user_access_desc FROM sys.databases WHERE state <> 0 — investigate each' ELSE 'No action required' END
UNION ALL
-- Optimize for ad hoc workloads
SELECT 14, 'Memory', 'Optimize for ad hoc workloads', 'MEDIUM',
CASE WHEN @optimize_adhoc = 1 THEN 'PASS' ELSE 'WARN' END,
CASE WHEN @optimize_adhoc = 1 THEN 'Optimize for ad hoc workloads is enabled'
ELSE 'Optimize for ad hoc workloads is OFF — single-use plan stubs waste plan cache memory' END,
CASE WHEN @optimize_adhoc = 0 THEN 'Enable: EXEC sp_configure ''optimize for ad hoc workloads'', 1; RECONFIGURE' ELSE 'No action required' END
UNION ALL
-- Compatibility levels
SELECT 15, 'Compatibility', 'Databases at current compat level', 'MEDIUM',
CASE WHEN @compat_behind_count = 0 THEN 'PASS' ELSE 'WARN' END,
CASE WHEN @compat_behind_count = 0 THEN 'All user databases are at the instance native compatibility level'
ELSE CAST(@compat_behind_count AS VARCHAR) + ' database(s) are below instance native compatibility level — may miss QO improvements' END,
CASE WHEN @compat_behind_count > 0 THEN 'Review with Get-CompatibilityLevelAudit.sql; test in non-prod before upgrading compat level' ELSE 'No action required' END
UNION ALL
-- Linked servers (awareness)
SELECT 16, 'Dependencies', 'Linked servers present', 'LOW',
CASE WHEN @linked_server_count = 0 THEN 'PASS' ELSE 'INFO' END,
CASE WHEN @linked_server_count = 0 THEN 'No linked servers configured'
ELSE CAST(@linked_server_count AS VARCHAR) + ' linked server(s) configured — review for security and dependency risk' END,
CASE WHEN @linked_server_count > 0 THEN 'Review with Get-LinkedServerAndJobInventory.sql — confirm each is still required' ELSE 'No action required' END
) checks
ORDER BY
CASE status WHEN 'FAIL' THEN 1 WHEN 'WARN' THEN 2 WHEN 'INFO' THEN 3 ELSE 4 END,
CASE weight WHEN 'CRITICAL' THEN 1 WHEN 'HIGH' THEN 2 WHEN 'MEDIUM' THEN 3 ELSE 4 END,
sort_order;
The script gathers roughly 20 configuration and database-state facts up front, evaluates each against a practical threshold, and returns one row per check with its status, finding, and remediation, worst issues first.
How To Run From The Repo
Clone DBA Tools, initialize and run the script:
# Clone dba-tools repo:
git clone https://github.com/peterwhyte-lgtm/dba-tools
# Initialize environment:
cd dba-tools
.\Initialize-Environment.ps1
# Run the full graded configuration audit:
.\run.ps1 Get-InstanceConfigurationScore
# To run against a remote sql server:
.\run.ps1 Get-InstanceConfigurationScore -ServerInstance SQLSERVER01
This script lives in the repo at:
sql/monitoring/instance/Get-InstanceConfigurationScore.sqlpowershell/wrappers/monitoring/instance/Get-InstanceConfigurationScore.ps1

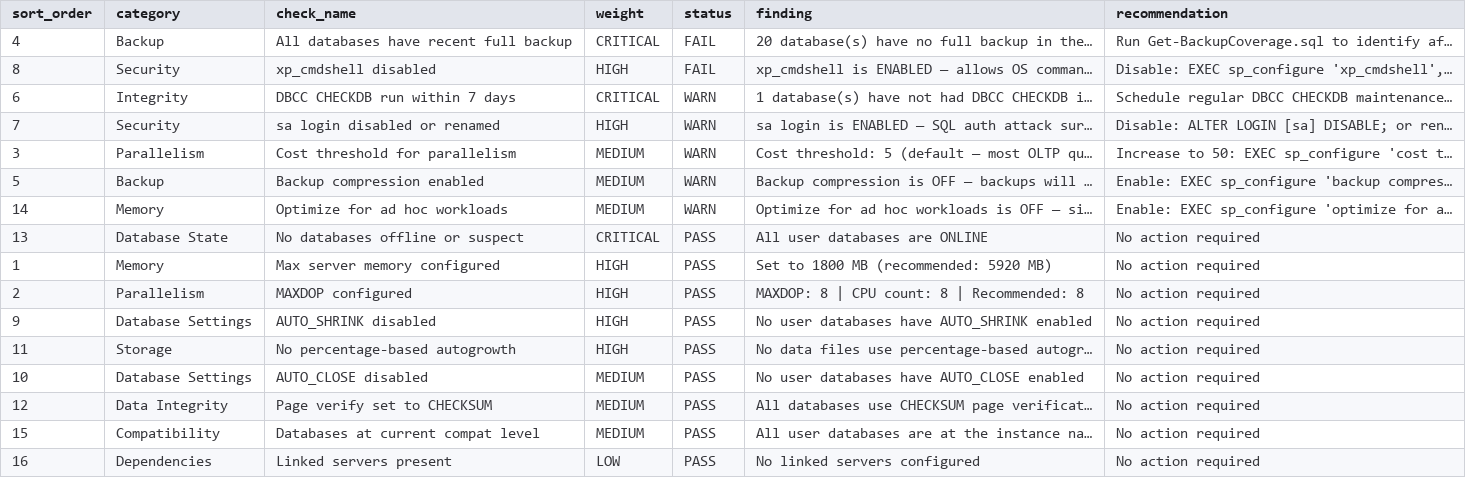

Example Output
| sort_order | category | check_name | weight | status | finding | recommendation |
|---|---|---|---|---|---|---|
| 4 | Backup | All databases have recent full backup | CRITICAL | FAIL | 20 database(s) have no full backup in the las… | Run Get-BackupCoverage.sql to identify affect… |
| 8 | Security | xp_cmdshell disabled | HIGH | FAIL | xp_cmdshell is ENABLED — allows OS command ex… | Disable: EXEC sp_configure ‘xp_cmdshell’, 0; … |
| 6 | Integrity | DBCC CHECKDB run within 7 days | CRITICAL | WARN | 1 database(s) have not had DBCC CHECKDB in 7+… | Schedule regular DBCC CHECKDB maintenance — w… |
| 7 | Security | sa login disabled or renamed | HIGH | WARN | sa login is ENABLED — SQL auth attack surface | Disable: ALTER LOGIN [sa] DISABLE; or rename:… |
| 3 | Parallelism | Cost threshold for parallelism | MEDIUM | WARN | Cost threshold: 5 (default — most OLTP querie… | Increase to 50: EXEC sp_configure ‘cost thres… |
| 5 | Backup | Backup compression enabled | MEDIUM | WARN | Backup compression is OFF — backups will be l… | Enable: EXEC sp_configure ‘backup compression… |
| 14 | Memory | Optimize for ad hoc workloads | MEDIUM | WARN | Optimize for ad hoc workloads is OFF — single… | Enable: EXEC sp_configure ‘optimize for ad ho… |
| 13 | Database State | No databases offline or suspect | CRITICAL | PASS | All user databases are ONLINE | No action required |
This lab instance genuinely fails two CRITICAL/HIGH checks: 20 databases with no full backup in the last 7 days (expected, they’re throwaway lab databases), and xp_cmdshell enabled (the same finding Get Database Mail and xp_cmdshell Configuration surfaces in more detail). The sa login being enabled and cost threshold left at its default round out the WARNs.
Understanding the Results
- status —
FAILneeds attention now,WARNis worth reviewing,PASSneeds nothing,INFOis awareness-only (like linked server count). - weight — CRITICAL and HIGH findings are sorted first regardless of status, so the most consequential checks are always near the top.
- finding — a plain-English description of the current state, with the actual numbers (how many databases, what the setting is currently set to).
- recommendation — the exact command or next step to fix it. For most
sp_configuresettings, this is copy-paste ready.
Best Practices
- Run this before anything else on a server you’ve just inherited; it orients you faster than reading through individual diagnostics one at a time.
- Don’t chase every WARN blindly. A few (like the linked server INFO check) are context-dependent, review before acting.
- Re-run after fixing findings to confirm the score actually improved, rather than assuming a config change worked.
- Treat this as a starting point, not a complete audit; it’s roughly 20 checks, not exhaustive. Deeper diagnostics (like Get Instance Configuration Snapshot) fill in the rest.
Related Scripts
You may also find these scripts useful:
- Server Inventory (hub)
- Instance Configuration Snapshot
- MAXDOP Configuration
- Memory Configuration and Usage
- CPU Topology and OS Configuration Checks
- Trace Flags and Resource Governor Configuration
Frequently Asked Questions
How is this different from the Instance Configuration Snapshot?
Snapshot is the raw data: every sp_configure setting, unfiltered. Score is the graded interpretation: about 20 of the settings and database-state facts that matter most, evaluated against practical thresholds with a pass/warn/fail verdict and a fix. Use Snapshot for a full baseline; use Score for a fast read on what actually needs attention.
Does a clean PASS score mean the server has no problems?
It means this specific set of ~20 checks passed. It’s a strong starting signal, not a complete audit; deeper, workload-specific issues (query performance, index design, capacity trends) aren’t covered here.
Summary
Twenty focused checks with a verdict and a fix beat a hundred raw settings with no context, especially on day one with a server you didn’t build. This script exists for exactly that moment.
Run it as the first thing on any new or inherited server, and again periodically as part of routine health checks to catch drift before it becomes a real problem.
Leave a Reply
