msdb Is Growing: Purge Backup, Job and Mail History Safely

Which msdb Problem Do You Have?

Four completely different things make msdb grow, and the fix for one does nothing for the others. Find the line that matches what you are actually looking at and start where it says.

Every step is one check and one decision. Nothing on this page deletes anything a restore needs, and Step 3 is the preview that proves it before you run the purge.

SELECT  f.name,
        f.type_desc,
        CAST(f.size * 8.0 / 1024 AS decimal(10,1))                            AS size_mb,
        CAST(FILEPROPERTY(f.name,'SpaceUsed') * 8.0 / 1024 AS decimal(10,1))  AS used_mb,
        f.physical_name
FROM    msdb.sys.database_files AS f;

SELECT  name, recovery_model_desc, log_reuse_wait_desc
FROM    sys.databases
WHERE   name = 'msdb';

Two things to read there. The data file is 90 percent used, which is normal and says nothing is wrong on its own. And msdb is in SIMPLE recovery, which is how Microsoft ships it. If yours says FULL, somebody applied a policy to every database on the instance and msdb now needs log backups like any other, which is a common and completely silent reason for a log that only grows. SQL Server Recovery Models Explained covers the choice, and Get Recovery Model Audit finds every database the policy caught.

If the file that is full is the log, skip to Step 5. If it is the data file, carry on.

USE msdb;

SELECT  t.name                                                          AS history_table,
        SUM(CASE WHEN ps.index_id < 2 THEN ps.row_count ELSE 0 END)     AS rows_,
        CAST(SUM(ps.reserved_page_count) * 8.0 / 1024 AS decimal(10,1)) AS reserved_mb
FROM    sys.dm_db_partition_stats AS ps
JOIN    sys.tables AS t ON t.object_id = ps.object_id
WHERE   t.name IN ('backupset','backupmediafamily','backupfile','backupfilegroup',
                   'restorehistory','sysjobhistory','sysmail_mailitems','sysmail_log',
                   'sysmaintplan_log','sysmaintplan_logdetail',
                   'log_shipping_monitor_history_detail','sysssislog')
GROUP BY t.name
ORDER BY SUM(ps.reserved_page_count) DESC;

That is a healthy instance, and it is here so you know what one looks like. The server you have been called about has one line with six or seven figures in the row count, and that line decides whether you need Step 4, Step 6 or Step 7. sys.dm_db_partition_stats is the cheap way to ask, because it reads cached allocation metadata rather than counting rows, so it returns in milliseconds on a table that COUNT(*) would sit on for a minute.

Across a whole estate the same question at database level is Get Database Sizes and Free Space, which is usually how msdb gets noticed in the first place.

USE msdb;

SELECT  DATEDIFF(DAY, backup_finish_date, GETDATE()) / 30 AS months_old,
        COUNT(*)                                          AS backup_sets,
        MIN(backup_finish_date)                           AS oldest_in_bucket
FROM    dbo.backupset
GROUP BY DATEDIFF(DAY, backup_finish_date, GETDATE()) / 30
ORDER BY months_old DESC;

On a server with a real problem the top of that list runs back years and the counts are in the hundreds of thousands. Read it as a work plan, not as a report: the oldest bucket is your first batch, and the number in it is how big that batch will be.

Two things this is also telling you. Backup history is not the backups. Deleting a row from backupset does not touch a .bak file and does not stop you restoring from it, it only means SSMS cannot build the restore sequence for you and RESTORE HEADERONLY becomes your friend. And whatever you keep, keep enough to cover your longest restore chain plus the reporting anybody actually does, which in practice is 90 days for most shops and 13 months for shops with an auditor. Get Database Backup History is the report that reads this data, and Get Backup Size Trend is the one that genuinely needs a long window, so check what it is charting before you choose a retention.

Read the procedure rather than guessing at it. sp_delete_backuphistory ships as plain T-SQL in msdb and you can see all of it with SELECT OBJECT_DEFINITION(OBJECT_ID('msdb.dbo.sp_delete_backuphistory')). This is the shape of it, trimmed to the part that matters:

DECLARE @backup_set_id TABLE      (backup_set_id INT)
DECLARE @media_set_id TABLE       (media_set_id INT)
DECLARE @restore_history_id TABLE (restore_history_id INT)

INSERT INTO @backup_set_id (backup_set_id)
SELECT DISTINCT backup_set_id
FROM msdb.dbo.backupset
WHERE backup_finish_date < @oldest_date
...
BEGIN TRANSACTION

  DELETE FROM msdb.dbo.backupfile      WHERE backup_set_id IN (SELECT backup_set_id FROM @backup_set_id)
  DELETE FROM msdb.dbo.backupfilegroup WHERE backup_set_id IN (SELECT backup_set_id FROM @backup_set_id)
  DELETE FROM msdb.dbo.restorefile     WHERE restore_history_id IN (SELECT restore_history_id FROM @restore_history_id)
  DELETE FROM msdb.dbo.restorefilegroup WHERE restore_history_id IN (SELECT restore_history_id FROM @restore_history_id)
  DELETE FROM msdb.dbo.restorehistory  WHERE restore_history_id IN (SELECT restore_history_id FROM @restore_history_id)
  DELETE FROM msdb.dbo.backupset       WHERE backup_set_id IN (SELECT backup_set_id FROM @backup_set_id)
  DELETE msdb.dbo.backupmediafamily ...
  DELETE msdb.dbo.backupmediaset ...

COMMIT TRANSACTION

Three facts fall straight out of that, and together they are the whole problem.

• Eight deletes, one transaction. There is a single BEGIN TRANSACTION and a single COMMIT. Nothing is released until all eight finish, so the log has to hold every row image for the whole run, the locks are held for the whole run, and cancelling half way through rolls the lot back and leaves you exactly where you started, only later.
• The row lists live in table variables. Table variables carry no statistics, so the optimizer costs IN (SELECT ... FROM @backup_set_id) as if it will match a handful of rows. Feed it 2 million and the plan it chose for a handful is the plan you get.
• It is driven by the date on one table. Everything else is found by joining back to the list of backup_set_id values, which is why the foreign key chain below decides how fast this runs.

The Foreign Key Chain

Backup history is seven tables wired together, and the deletes have to go in child-before-parent order or the constraints reject them. This is the real chain, read from sys.foreign_keys in msdb:

SELECT  OBJECT_NAME(fk.parent_object_id)     AS child_table,
        OBJECT_NAME(fk.referenced_object_id) AS parent_table,
        fk.delete_referential_action_desc    AS on_delete
FROM    msdb.sys.foreign_keys AS fk
WHERE   OBJECT_NAME(fk.referenced_object_id) IN
            ('backupset','backupmediaset','restorehistory')
ORDER BY parent_table, child_table;

Every one is NO_ACTION, so there is no cascade doing the work for you. Each delete from a parent has to be preceded by its children and checked against every remaining child, which is where the index question comes in.

Check the Indexes, Do Not Assume They Are Missing

The advice you will find on forums is to add a clutch of indexes to msdb, headed by one on backupset.backup_finish_date. Check before you create anything, because on current builds Microsoft has already shipped them. This asks whether every foreign key column in msdb has an index that leads on it:

USE msdb;

WITH fkcol AS (
    SELECT  OBJECT_NAME(fkc.parent_object_id)    AS child_table,
            OBJECT_NAME(fk.referenced_object_id) AS parent_table,
            c.name                               AS child_col,
            fkc.parent_object_id AS oid, fkc.parent_column_id AS cid
    FROM    sys.foreign_keys AS fk
    JOIN    sys.foreign_key_columns AS fkc ON fkc.constraint_object_id = fk.object_id
    JOIN    sys.columns AS c ON c.object_id = fkc.parent_object_id
                            AND c.column_id = fkc.parent_column_id
)
SELECT  f.child_table, f.child_col, f.parent_table,
        CASE WHEN EXISTS (SELECT 1 FROM sys.index_columns AS ic
                          WHERE ic.object_id = f.oid AND ic.column_id = f.cid
                            AND ic.key_ordinal = 1 AND ic.is_included_column = 0)
             THEN 'indexed' ELSE 'NO INDEX' END AS supporting_index
FROM    fkcol AS f
ORDER BY supporting_index, f.child_table;

On SQL Server 2025 all 7 of the backup and restore history foreign keys are already covered, and backupset carries 4 nonclustered indexes of its own including backupsetDate on backup_finish_date. Run the check on your own build before you add anything, and if your instance really is missing the date index, this is the one everybody adds:

-- Only if the check above says it is missing.
CREATE NONCLUSTERED INDEX backupsetDate
    ON msdb.dbo.backupset (backup_finish_date);

The three that are genuinely unindexed on a current build are the Database Mail and maintenance plan children, which is Step 7, and that is a far better use of a CREATE INDEX than re-creating something that is already there. See sp_delete_backuphistory on MS Docs for the parameter and the permissions it needs.

Here is what the one shot version costs. A throwaway database was built with the same table shapes and the same foreign key chain as msdb backup history: 40,000 backup sets spread over 1,000 days, with 80,000 backupfile rows, 40,000 backupfilegroup rows and 40,000 media sets behind them. Its log file was capped at 32 MB, which is simply a smaller version of a log on a drive that has no room left. Then one cutoff, everything in one transaction:

54 seconds in, and when the rollback finished the table still held all 40,000 backup sets. That is the part worth sitting with: the run was not partly successful. One transaction means all or nothing, so an hour of work and a failure at the end leaves the instance exactly where it started, with an hour of log written and thrown away. ACTIVE_TRANSACTION in that message is the log telling you the holdup is your own purge.

Then the same database, which still held all 40,000 backup sets because the first attempt rolled back, and the same 32 MB log, deleted oldest first in 30 day steps:

Nothing clever happened there. Each batch committed on its own, the checkpoint let the log reuse the space, and the next batch started in a log that had room. The stepped run was still working through the backlog when this was written, and that is the point rather than a caveat: it makes progress you keep. The single transaction makes none, however long you leave it, and it would behave the same way at 4 million rows, because what sets the size of a batch is the date window and not the size of the table.

This is the pattern, written against the supported procedure rather than against the tables:

-- Catch up on a backlog. Run it when the Agent is quiet.
DECLARE @keep_days int      = 90;
DECLARE @step_days int      = 7;          -- smaller on a bigger backlog
DECLARE @cutoff    datetime = DATEADD(DAY, -@keep_days, GETDATE());
DECLARE @step      datetime = (SELECT MIN(backup_finish_date) FROM msdb.dbo.backupset);

WHILE @step < @cutoff
BEGIN
    SET @step = DATEADD(DAY, @step_days, @step);
    IF @step > @cutoff SET @step = @cutoff;

    EXEC msdb.dbo.sp_delete_backuphistory @oldest_date = @step;

    -- Breathing room for the log and for anything else using msdb.
    WAITFOR DELAY '00:00:02';
END

Four things about it that are deliberate.

• It starts at the oldest row, not at the cutoff. That is what makes each call small. Calling the procedure once with the cutoff is the thing that just failed.
• @step_days is a dial. Seven days is a sensible start. If a batch still runs long, halve it. There is no penalty for small batches beyond a few more round trips, and there is a large penalty for one that is too big.
• The WAITFOR is not padding. The Agent is writing into these tables while you delete from them, and a purge that never pauses will block job history writes and get blocked in return.
• It is restartable. Stop it at any point and the work already committed stays committed. Run it again tomorrow and it picks up from the new oldest row.

Watch it from another session with the Step 3 preview query: the oldest bucket disappearing one row at a time is how you know it is working, and it is a far better progress indicator than staring at a spinning cursor.

Read the current setting first. It is stored in the registry rather than in a table, and this is the supported way to see it:

EXEC msdb.dbo.sp_get_sqlagent_properties;

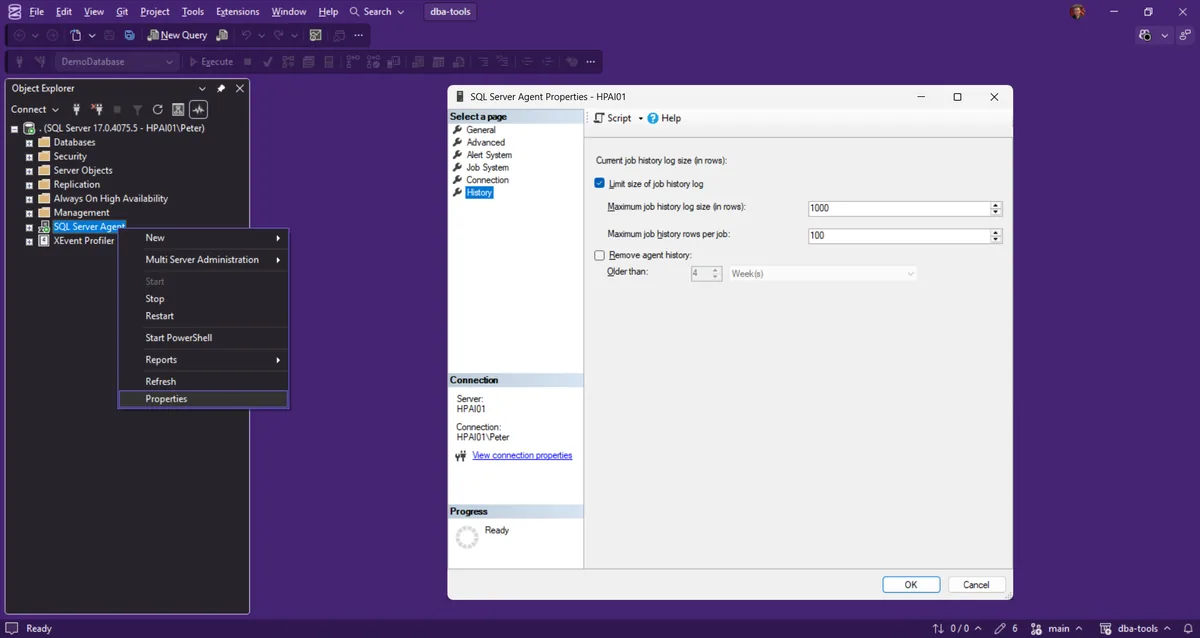

Those are the shipped defaults, and they are the same two boxes as SQL Server Agent Properties, History page, “Limit size of job history log”: 1000 rows for the whole instance and 100 per job. On that instance sysjobhistory held 972 rows, which is the cap doing its job rather than a coincidence.

If what comes back is not a sensible row count, the box is unticked and there is no cap at all, which is the usual explanation for a sysjobhistory with millions of rows: nothing has ever trimmed it. A busy instance with a job every minute and several steps per job writes a row per step, and that is 5 million rows a year without anybody doing anything wrong. The other common cause is a job that logs step output into the history, which makes each row large as well as numerous. MS Docs documents the dialog on the SQL Server Agent Properties, History Page.

Purging it is one supported call, and unlike backup history it is a single table with no chain behind it:

DECLARE @cutoff datetime = DATEADD(DAY, -90, GETDATE());

EXEC msdb.dbo.sp_purge_jobhistory @oldest_date = @cutoff;

Two cautions. The parameter has to be a variable or a constant, not an expression: @oldest_date = DATEADD(DAY, -90, GETDATE()) inside an EXEC is a syntax error, which is why the declare is on its own line above. And on a table of several million rows this is still one delete in one transaction, so step the date the same way as Step 5 if the first attempt sits there. The procedure also takes @job_name if one job is the whole problem, which is the quickest way to deal with a single chatty job without touching anybody else’s history. The parameters are on MS Docs under sp_purge_jobhistory.

Before you delete it, be sure nothing is reading it. Duration trending reads sysjobhistory directly, so check what Get Job Schedules and Duration Trends is charting and keep a window that covers it, and Get SQL Agent Job Overview will tell you which jobs are producing the volume in the first place.

Database Mail keeps the message body and any attachment in msdb until something deletes it, and nothing deletes it by default. Two procedures, and they are separate on purpose: one removes the messages, the other removes the diagnostic log about sending them.

DECLARE @cutoff datetime = DATEADD(DAY, -30, GETDATE());

-- The messages themselves, with their attachments.
EXEC msdb.dbo.sysmail_delete_mailitems_sp @sent_before = @cutoff;

-- The send log, which is diagnostics and not the mail.
EXEC msdb.dbo.sysmail_delete_log_sp @logged_before = @cutoff;

Both take an optional status filter as well, so @sent_status = 'sent' keeps the failures while clearing everything that went out cleanly, which is usually what you want on the first pass. MS Docs has the full signatures for sysmail_delete_mailitems_sp and sysmail_delete_log_sp.

This is where the index check in Step 4 pays off. sysmail_attachments.mailitem_id and sysmail_send_retries.mailitem_id are foreign keys back to sysmail_mailitems and neither has an index that leads on them, so deleting a mail item means a scan of those tables to prove nothing still points at it. On an instance with a few hundred thousand mail items that is the difference between a purge that finishes and one that does not. Batch this one by date as well, and if the table is enormous and you are going to be doing this regularly, these two are a far better use of a CREATE INDEX than anything on backupset.

Maintenance plans have their own pair of tables, sysmaintplan_log and sysmaintplan_logdetail, with the same shape of problem: the detail table is the child, it has no supporting index on its foreign key, and nothing trims either of them unless you ask. If the plan writes a report to the log on every run it grows steadily and silently for years.

The queue side of Database Mail, which is a different question from the history side, is covered by Get Service Broker Health and Database Mail Queue. Run it before you purge if mail has also stopped arriving, because an enormous sysmail_mailitems and a stalled mail queue are two different incidents that like to happen on the same day.

Whether you then shrink is a real decision and not a formality. If msdb grew to 20 GB once because of a decade of history and will now stay at 500 MB, shrinking it once is reasonable and the space is genuinely wanted back. If it is 2 GB and will be 2 GB again next quarter, shrinking it just means it autogrows all over again and you have bought nothing but fragmentation. Shrink once, after the purge, never on a schedule, and reindex msdb afterwards because the shrink will have fragmented what is left.

-- Only after the purge, and only once. Target leaves room to grow back into.
USE msdb;
DBCC SHRINKFILE (MSDBData, 512);

The cost of shrinking is measured rather than asserted in SQL Server Shrink Fragmentation Measured, and Shrink Database Files in Chunks is how to do it on a file big enough that one call would run all night. MS Docs covers the mechanics under Shrink a database.

The steady state is a weekly job with four statements in it, each with a retention you chose on purpose. Once the backlog is cleared by the date stepping in Step 5, a weekly run only ever deletes one week of history, which finishes in seconds and never troubles the log again. That is the whole point of catching up with batches rather than one cutoff: you are not trying to make the big delete fast, you are trying to never need the big delete again.

-- Weekly, after the backlog is cleared. Retentions chosen, not inherited.
DECLARE @BackupCutoff datetime = DATEADD(DAY, -90, GETDATE());
DECLARE @JobCutoff    datetime = DATEADD(DAY, -90, GETDATE());
DECLARE @MailCutoff   datetime = DATEADD(DAY, -30, GETDATE());

EXEC msdb.dbo.sp_delete_backuphistory @oldest_date = @BackupCutoff;
EXEC msdb.dbo.sp_purge_jobhistory     @oldest_date = @JobCutoff;

IF EXISTS (SELECT 1 FROM msdb.dbo.sysmail_profile)
BEGIN
    EXEC msdb.dbo.sysmail_delete_mailitems_sp @sent_before   = @MailCutoff;
    EXEC msdb.dbo.sysmail_delete_log_sp       @logged_before = @MailCutoff;
END

If you would rather not hand-build the job on every instance, Generate Database Integrity and Housekeeping Jobs writes it out as readable DDL alongside the integrity checks, with the retentions as parameters, so you can review the T-SQL before it ever runs on a production box. Tick the Agent history limit back on while you are in there, because that is the one setting that keeps Step 6 from recurring without a job at all.
