Part of the SQL Server Wait Types Library
BACKUPIO and BACKUPBUFFER appear when backup operations are waiting on I/O:
BACKUPIO: the backup writer thread is waiting for data to be written to the backup destination (disk, network share, VDI device, tape). The backup can’t proceed until the previous write completes.BACKUPBUFFER: the backup process is waiting for an internal buffer to become available, specifically the buffer that bridges the read (from source data) and write (to destination) sides of the backup pipeline. This usually appears when the destination write speed is significantly slower than the source read speed, causing the pipeline to back up.
In practice, BACKUPIO is the more meaningful wait. BACKUPBUFFER accompanies it when there’s a severe destination bottleneck.
Is This Wait Expected?
Yes, during backup windows. If your full backup runs at midnight, you’ll see BACKUPIO elevated during that window. That’s normal and expected, backup I/O is I/O, and the wait type is just recording it. The question is whether your backups are completing in a reasonable time.
No, outside backup windows. BACKUPIO appearing during production hours when no scheduled backup is running means something unexpected is taking a backup, check for ad-hoc backups, third-party backup agents, or backup jobs that ran late and overlapped with business hours.
It’s a problem when:
– Backup duration has been growing over time and now extends into business hours
– Backups are timing out or failing
– Backup I/O is competing with production I/O and causing PAGEIOLATCH_* waits to spike during the backup window
Root Causes
Slow backup destination, the most common cause. Writing to a UNC share over a 1 Gbps network, to a tape library, or to a remote backup server creates a write bottleneck. The backup can only write as fast as the destination accepts data. For a 1 TB database, 1 Gbps is about 100 MB/s maximum, a backup takes at least 10 minutes just for network throughput, and real-world overhead makes it longer.
Backup destination I/O contention, a shared NAS or backup target that receives backups from multiple servers simultaneously. Your server competes with other servers for write bandwidth on the destination.
Backup competing with production reads, a full backup reads every page in every data file. On a server with a large working set, a backup scan evicts data pages from the buffer pool (recently read backup pages displace cached production pages), causing a spike in production PAGEIOLATCH_SH during the backup. This is I/O read competition, not BACKUPIO specifically, but it’s the companion problem.
No backup compression, uncompressed backups are proportionally larger and take proportionally longer to write. Compression is available since SQL Server 2008 Standard and later and is almost always worth enabling.
Single backup file on a single destination, backup I/O is sequential to a single destination by default. Striping across multiple backup files to multiple disks or network paths multiplies effective throughput.
How To Diagnose It

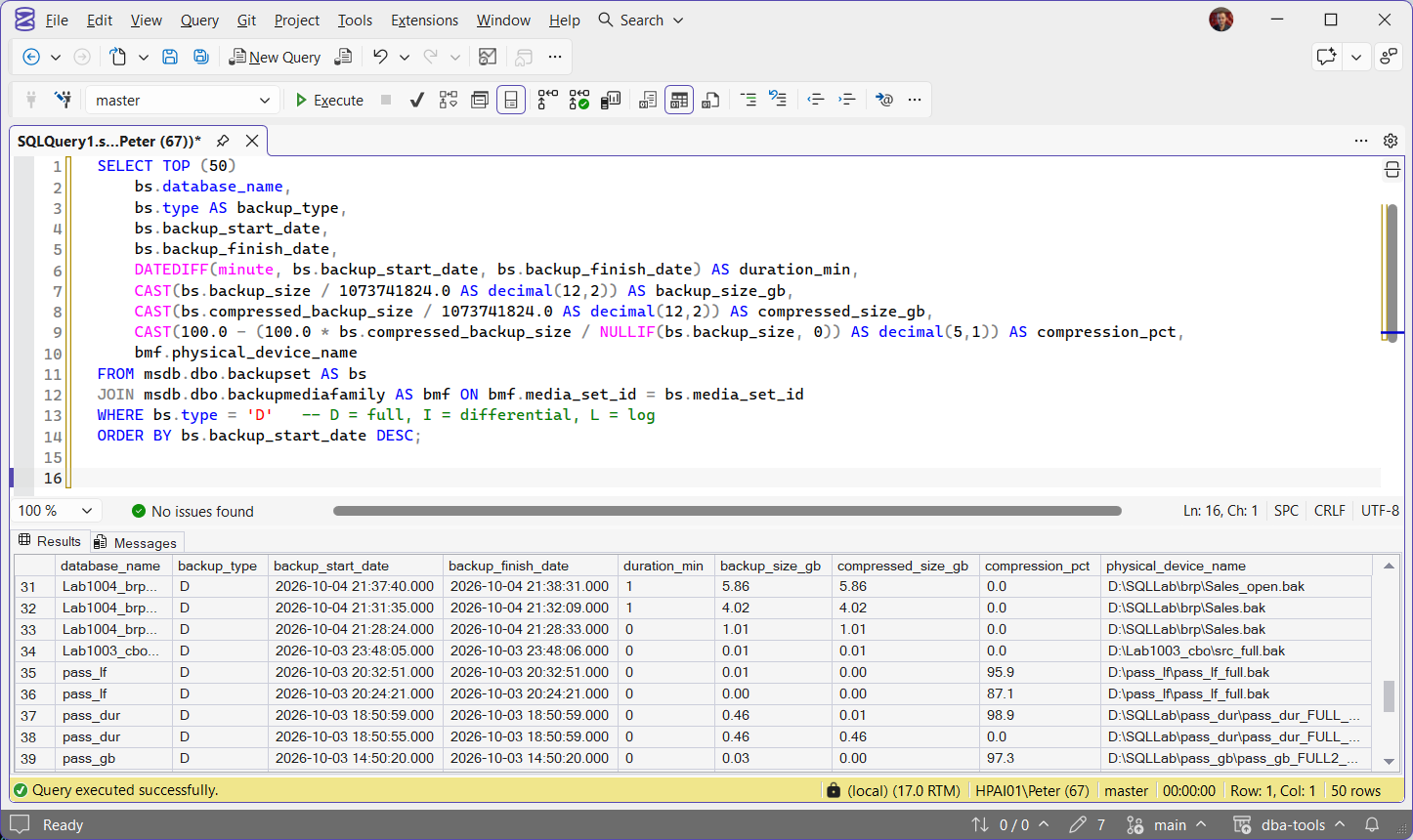

Check backup history and duration trends:
SELECT TOP 50
bs.database_name,
bs.type AS backup_type,
bs.backup_start_date,
bs.backup_finish_date,
DATEDIFF(minute, bs.backup_start_date, bs.backup_finish_date) AS duration_min,
bs.backup_size / 1024 / 1024 / 1024.0 AS backup_size_gb,
bs.compressed_backup_size / 1024 / 1024 / 1024.0 AS compressed_size_gb,
CASE WHEN bs.compressed_backup_size > 0
THEN CAST(100.0 - (100.0 * bs.compressed_backup_size / bs.backup_size) AS DECIMAL(5,1))
ELSE NULL END AS compression_pct,
bmf.physical_device_name
FROM msdb.dbo.backupset bs
JOIN msdb.dbo.backupmediafamily bmf ON bmf.media_set_id = bs.media_set_id
WHERE bs.type = 'D' -- D = full, I = differential, L = log
ORDER BY bs.backup_start_date DESC;
Look for:
– duration_min trending upward over weeks/months, the backup is getting slower
– compression_pct near 0 or NULL, compression may not be enabled
– physical_device_name pointing to a UNC share, network may be the bottleneck

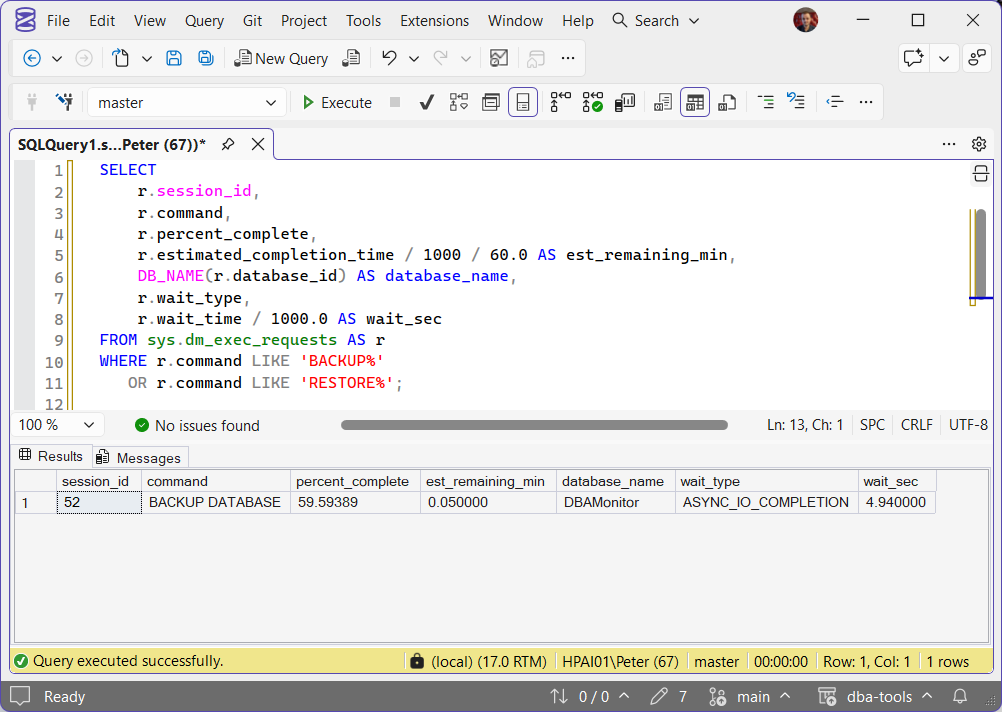

Check if backups are active right now:
SELECT
r.session_id,
r.command,
r.percent_complete,
r.estimated_completion_time / 1000 / 60.0 AS est_remaining_min,
DB_NAME(r.database_id) AS database_name,
r.wait_type,
r.wait_time / 1000.0 AS wait_sec
FROM sys.dm_exec_requests r
WHERE r.command LIKE 'BACKUP%'
OR r.command LIKE 'RESTORE%';
What To Do
Enable backup compression, the single highest-impact change you can make to improve backup performance:
-- For a single backup:
BACKUP DATABASE [YourDatabase]
TO DISK = 'D:\Backups\YourDatabase.bak'
WITH COMPRESSION, STATS = 10;
-- Set as default for all future backups:
EXEC sp_configure 'backup compression default', 1;
RECONFIGURE;
Compression typically reduces backup size by 60–80% on mixed data, cutting both write I/O and network transfer time proportionally.
Stripe across multiple backup files, write to multiple destinations simultaneously:
BACKUP DATABASE [YourDatabase]
TO DISK = '\\backup1\share\YourDatabase_1.bak',
DISK = '\\backup2\share\YourDatabase_2.bak',
DISK = 'D:\LocalBackup\YourDatabase_3.bak'
WITH COMPRESSION, STATS = 5;
This spreads I/O across destinations and can multiply effective throughput.
Move backups to faster or dedicated backup storage, a dedicated backup LUN or a local fast disk for landing backups, followed by a secondary copy job, is faster than writing directly to a shared NAS over the network.
Tune BUFFERCOUNT and MAXTRANSFERSIZE, for large databases, increasing these can improve backup throughput:
BACKUP DATABASE [YourDatabase]
TO DISK = 'D:\Backups\YourDatabase.bak'
WITH COMPRESSION, MAXTRANSFERSIZE = 4194304, BUFFERCOUNT = 50;
MAXTRANSFERSIZE = 4194304 (4 MB) is common for large databases. Increasing BUFFERCOUNT uses more memory but can improve throughput on fast destinations. Test before applying to production, wrong values can cause backups to fail.
Offload to an AG secondary, if you have an Always On AG, run full and differential backups against a secondary replica instead of the primary:
-- In the AG configuration:
ALTER AVAILABILITY GROUP [YourAG]
MODIFY REPLICA ON 'SecondaryServer'
WITH (BACKUP_PRIORITY = 50);
-- On primary:
ALTER AVAILABILITY GROUP [YourAG]
MODIFY REPLICA ON 'PrimaryServer'
WITH (BACKUP_PRIORITY = 0); -- prefer secondary for backups
This removes backup read I/O from the primary entirely.
Schedule backups to avoid peak hours, if backups are running into business hours, either start them earlier (allowing more time) or break one large full into a differential strategy (smaller daily jobs, larger weekly full).
Related Scripts

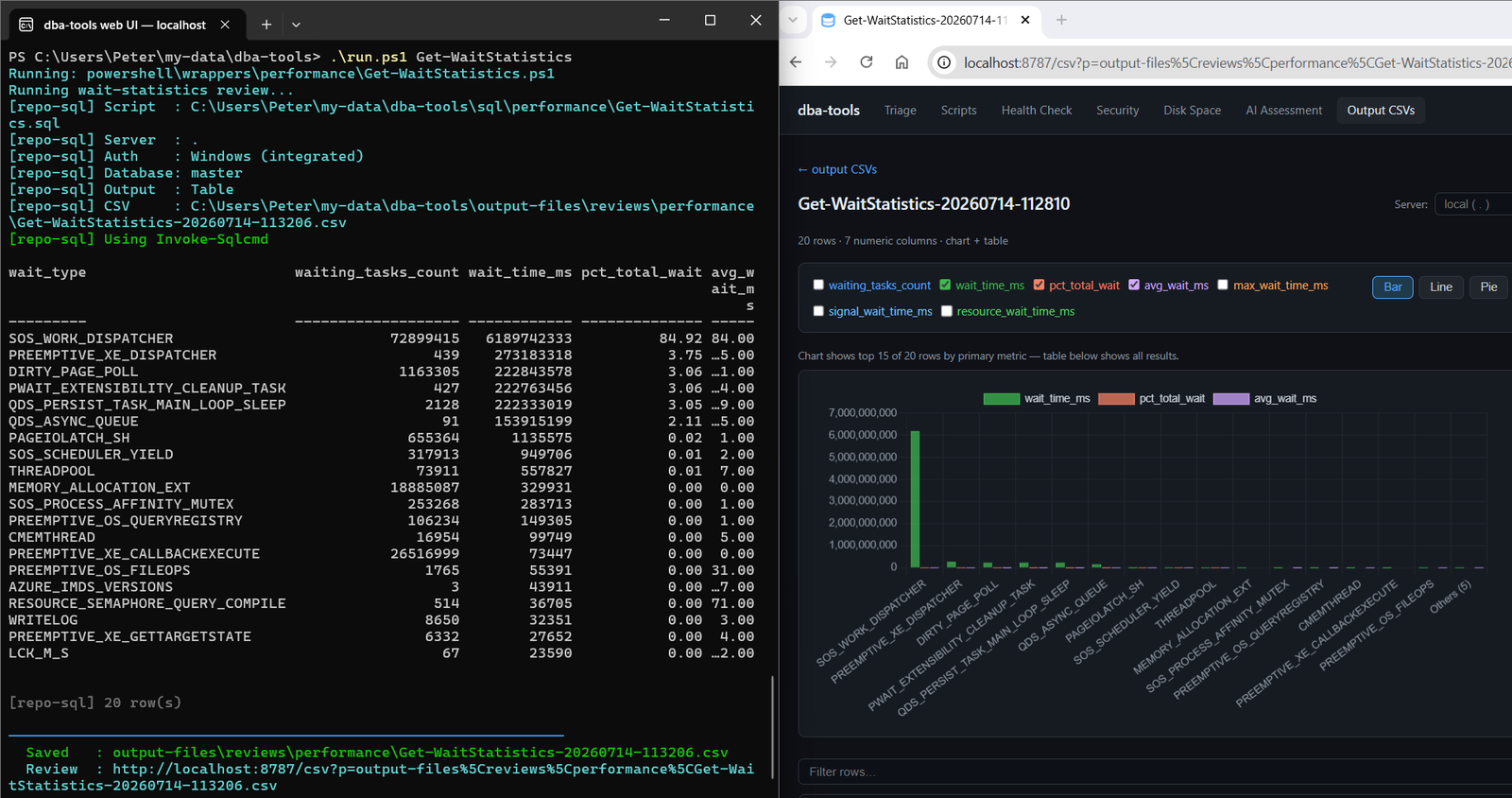

Get-WaitStatistics, the overview scriptGet-BackupCoverage, audit backup coverage across all databases
