Create a Linked Server to Another SQL Server

A linked server lets one SQL Server query another as if the remote tables were local. Two stored procedures create it. The reason this is worth a post in 2026 is that the two stored procedures now very often fail on the first attempt, for a reason that has nothing to do with the syntax.

Everything below was run on a SQL Server 2025 instance, including the failure.

---

The Two Statements

-- 1. define the link
EXEC sp_addlinkedserver
     @server     = N'REMOTE_SQL',            -- the name you will use in queries
     @srvproduct = N'',
     @provider   = N'MSOLEDBSQL',
     @datasrc    = N'SERVERNAME\INSTANCE';   -- the machine you are connecting to

-- 2. decide who it connects as
EXEC sp_addlinkedsrvlogin
     @rmtsrvname  = N'REMOTE_SQL',
     @useself     = N'True';                 -- pass the caller's Windows login through

@useself = True is convenient rather than automatically correct. It passes the caller’s Windows login through, which only works if that login exists on the remote instance with the rights it needs, and it falls over on a double hop: an Agent job, a web app, or a link called from another link. Most estates map a dedicated account instead:

EXEC sp_addlinkedsrvlogin
     @rmtsrvname  = N'REMOTE_SQL',
     @useself     = N'False',
     @locallogin  = NULL,                        -- applies to every local login
     @rmtuser     = N'svc_linked_reader',
     @rmtpassword = N'...';

Give that account the least it needs on the far side. Mapping everyone through a sysadmin to get the link working is a standing remote admin session nobody will revisit.

@server is a label, not a hostname. It is the name you type in your queries, and keeping it different from the machine name is often clearer.

---

Before You Blame the Linked Server

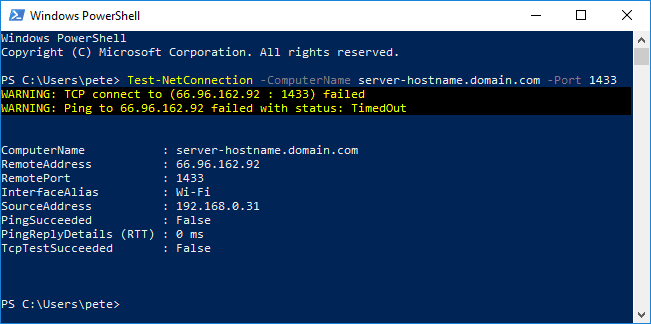

If the link cannot connect at all, check the network before you start changing providers and login mappings. One line settles whether the instance is even reachable on its port:

Test-NetConnection -ComputerName sqlserver.yourdomain.com -Port 1433

1433 is only right for a default instance. A named instance usually listens on a dynamic port, so testing 1433 against one tells you nothing useful. Get its real port from sys.dm_tcp_listener_states on the target, or the error log line beginning Server is listening on. If you rely on SQL Browser to resolve the instance name, that is UDP 1434 and it has to be running.

TcpTestSucceeded : True means the port is open and you can go on to the configuration. False means a firewall, the wrong port, a named instance using a dynamic port, or the SQL Browser service being off. Note that PingSucceeded being False on its own means very little, because ICMP is blocked on plenty of networks that happily serve SQL.

---

The Failure You Will Probably Hit First

Run exactly that, then query it, and on a lot of estates you get this:

HResult 0x80090325, Level 16, State 1
SSL Provider: The certificate chain was issued by an authority that is not trusted.

OLE DB provider "MSOLEDBSQL19" for linked server "REMOTE_SQL" returned message
"Client unable to establish connection."

Nothing is wrong with your syntax. The modern driver encrypts by default. MSOLEDBSQL 18 and 19 changed the default to Encrypt=yes, so the link now insists on a TLS certificate that the calling server trusts. Most internal SQL Servers are using a self-signed certificate, which nothing else trusts, and the connection is refused.

Note the version in the message. You asked for MSOLEDBSQL and the error is reported against MSOLEDBSQL19, which is the first clue as to what is really being used.

The Fix

The correct fix is to install a certificate on the target that your calling server trusts, issued by your own internal CA. That is a real piece of work and it is the right answer for production.

The quick fix, and the one most people want at 4pm, is to tell the link to trust the certificate anyway:

EXEC sp_addlinkedserver
     @server     = N'REMOTE_SQL',
     @srvproduct = N'',
     @provider   = N'MSOLEDBSQL',
     @provstr    = N'Encrypt=Mandatory;TrustServerCertificate=Yes',   -- the line that matters
     @datasrc    = N'sqlserver.yourdomain.com\INSTANCE';

Three forms were tested on the same SQL Server 2025 instance and all three worked: TrustServerCertificate=yes on its own, Encrypt=Mandatory;TrustServerCertificate=Yes, and Encrypt=Optional. Only omitting the provider string entirely failed. So the short form is not broken, but name Encrypt anyway: being explicit says what you meant instead of relying on a driver default that has already changed once, and it is the form Microsoft’s own examples use. Encrypt=Optional is the closest thing to the old behaviour and the one to be most careful with, because it will quietly stop encrypting.

Use the fully qualified name in @datasrc. A short name is how you later get a certificate that is valid but does not match, at which point HostNameInCertificate in the provider string is the fix rather than another round of trust-bypassing.

Verified: with that provider string the same link worked immediately, returning rows from the remote instance and serving OPENQUERY as well. Understand what you have done, though. The traffic is still encrypted, but you are no longer checking who you are encrypting it to, which removes the protection against an interposed server. Fine on a trusted internal segment as a stop-gap, not something to leave forever on a link carrying sensitive data.

This is the same underlying change that produces the certificate error in SSMS, covered in SSMS Certificate Chain Not Trusted. If you would rather fix it properly than trust it, Forcing Encrypted Connections Using Certificates walks through the certificate side.

Going Back to the Old Provider Does Not Work

The obvious dodge is to ask for the older SQLNCLI provider, which did not force encryption. Tested, and it does not help: the instance substituted MSOLEDBSQL19 anyway and the connection failed with the identical certificate error. SQL Native Client is out of support and it is not an escape route from this.

Microsoft’s reference covers sp_addlinkedserver, OLE DB Driver for SQL Server and Encryption and certificate validation in full.

---

Check It Before You Trust It

EXEC sp_testlinkedserver N'REMOTE_SQL';   -- throws if the link cannot connect

SELECT  name,
        product,
        provider,
        data_source,
        is_data_access_enabled,
        is_rpc_out_enabled
FROM    sys.servers
WHERE   is_linked = 1;

-- and who each link actually connects as
SELECT  s.name              AS linked_server,
        p.name              AS local_login,
        ll.remote_name,
        ll.uses_self_credential
FROM    sys.servers s
JOIN    sys.linked_logins ll ON ll.server_id = s.server_id
LEFT JOIN sys.server_principals p ON p.principal_id = ll.local_principal_id
WHERE   s.is_linked = 1;

uses_self_credential = 1 against a NULL local login means every caller is impersonated. That is the row that surprises people when an Agent job starts running as the Agent service account.

Those last two columns are the ones to read. On a freshly created link, is_data_access_enabled is 1 and is_rpc_out_enabled is 0. That default is behind the next problem.

---

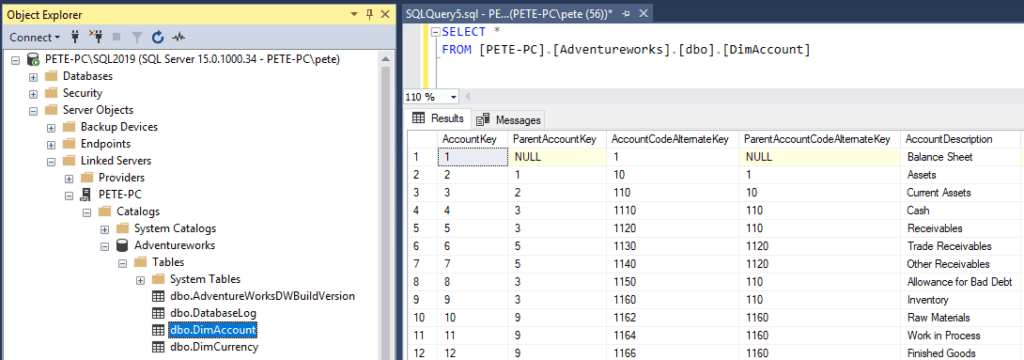

Querying It: Four-Part Names and OPENQUERY

-- four-part name: resolved locally
SELECT TOP 100 *
FROM   REMOTE_SQL.SalesDB.dbo.Orders
WHERE  OrderDate >= '2026-01-01';

-- OPENQUERY: the text runs on the REMOTE server, only the result comes back
SELECT *
FROM   OPENQUERY(REMOTE_SQL,
       'SELECT * FROM SalesDB.dbo.Orders WHERE OrderDate >= ''2026-01-01''');

They look equivalent and they are not. A four-part name is planned locally, and SQL Server may decide to drag a great deal more across the link than you intended before applying your WHERE clause here. OPENQUERY hands the whole statement to the remote optimiser and brings back only the rows. On anything with a filter, a join or an aggregate, OPENQUERY is usually the faster option by a wide margin.

The cost is that the string is literal. Parameters have to be built into it, which means sp_executesql and proper quoting rather than string-concatenating user input.

---

Executing Remote Procedures: Msg 7411

Running a procedure on the other side needs a setting that is off by default:

EXEC ('EXEC SalesDB.dbo.usp_Rebuild') AT REMOTE_SQL;

Msg 7411, Level 16, State 1
Server 'REMOTE_SQL' is not configured for RPC.

Enable it, and it works:

EXEC sp_serveroption @server = N'REMOTE_SQL', @optname = N'rpc out', @optvalue = N'true';

Verified on both sides of that change: the same statement failed before and succeeded after. Leave rpc out off unless you actually need it, because it widens what the link can do on the remote server.

Microsoft’s reference covers OPENQUERY and sp_serveroption in full.

---

Two Errors Worth Recognising

---

Removing One, Carefully

EXEC sp_dropserver @server = N'REMOTE_SQL', @droplogins = 'droplogins';

Read the name twice before you run it. sp_dropserver does not only drop linked servers. Pass the local instance’s own name and it removes the instance’s own row from sys.servers, leaving that view empty and breaking anything that relies on the local entry. If it happens, this puts it back:

EXEC sp_addserver @server = N'YourInstanceName', @local = 'LOCAL';

SELECT server_id, name, is_linked FROM sys.servers;   -- server_id 0 is the local entry

A safe habit is to check is_linked = 1 for the name you are about to drop, rather than trusting that a cleanup script only ever created what it is now removing.

---

Frequently Asked Questions

---

Related

• SSMS Certificate Chain Not Trusted Error (Trust Server Certificate Fix)
• Forcing Encrypted Connections in SQL Server Using Certificates
• Linked Server: Login Failed for User NT AUTHORITY\ANONYMOUS LOGON, and Error 7391 Distributed Transactions, when the default security option fails from a desktop connection
• DBA Scripts: Get Linked Servers
• DBA Scripts: Generate Linked Server Script
• DBA Scripts: The Complete Guide

---

Summary

sp_addlinkedserver then sp_addlinkedsrvlogin, and expect the first attempt to fail with a certificate error, because MSOLEDBSQL 18 and 19 encrypt by default. Encrypt=Mandatory;TrustServerCertificate=Yes in the provider string gets you moving; a properly trusted certificate is the real answer. Asking for the old SQLNCLI provider does not avoid it. After that, remember that rpc out is off by default, that OPENQUERY usually beats a four-part name for anything filtered, and that sp_dropserver will remove your local server entry if you hand it the wrong name.
